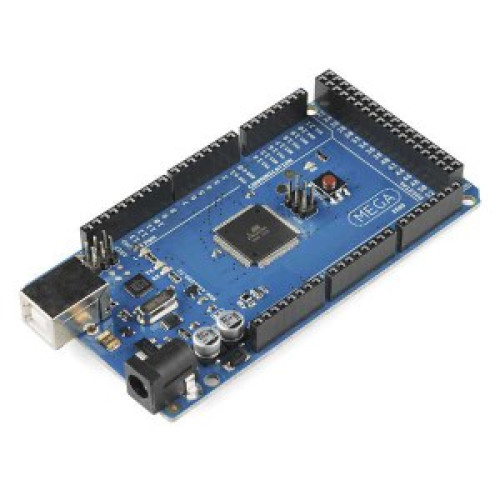

ARDUINO MEGA 2560 R3 (COMPATIBLE) -  ATmega2560 AVR USB board

The Mega 2560 is an update for Arduino Mega, which it replaces.
The board is a microcontroller board based on the ATmega2560-16AU.

It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Product Summary:
CH340G replace the Atmega 8U2/16U2
CH340G Driver Download link, please copy the link and paste in browser:

www.5v.ru/ch340g.htm


Specifications:
Microcontroller:ATmega2560
Clock Speed:16 MHz
EEPROM:4 KB
SRAM:8 KB
Flash Memory:256 KB of which 8 KB used by bootloader
Operating Voltage:5V
Input Voltage (recommended):7-12V
Analog Input Pins:16
Digital I/O Pins:54 (of which 14 provide PWM output)
DC Current for 3.3V Pin:50 mA
DC Current per I/O Pin:40 mA
Size:100*55mm
